Esoteric G-05

Esoteric's Manufactured Clock Module:
The "Master Sound Discrete Clock" in the G-05 was entirely developed by Esoteric. From the selection of the quartz oscillator and the temperature control circuit to the control program, it has been optimized to ensure the highest precision and enhanced musical expression.

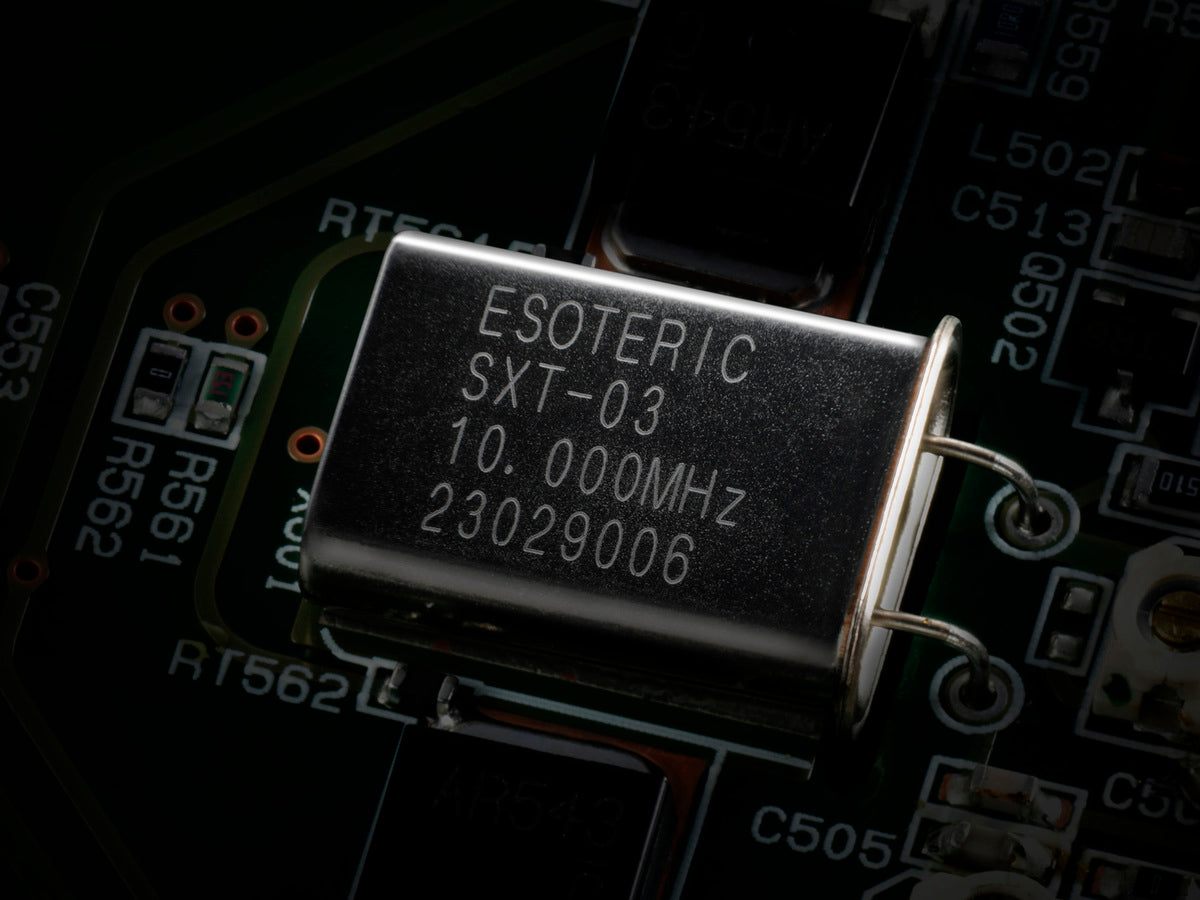

Esoteric SXT-03 Custom Crystal Oscillator:
A large, custom-designed crystal oscillator with ideal electrophysical properties.
Raw crystal material is slowly grown over a long period and cut using a stress-compensated cut (SC) for excellent temperature stability.
Crystals are carefully selected to guarantee minimal mid-frequency fluctuations.
Large crystals ensure stable oscillations even with high circuit resistance.

Master Sound TC – Proprietary Temperature Control Program:
Temperature control is crucial for maximum frequency accuracy.
The Master Sound TC system individually controls the furnace temperature for each crystal.
A combination of specially developed hardware and control software ensures extremely stable and natural clock output.

Unique calibration process:
The temperature characteristics of each SXT-03 crystal are measured, and an individual chart is created.
The microcomputer control program is adjusted to the crystal's ambient temperature.
Each crystal is individually fired and calibrated to ensure maximum stability and musicality.
